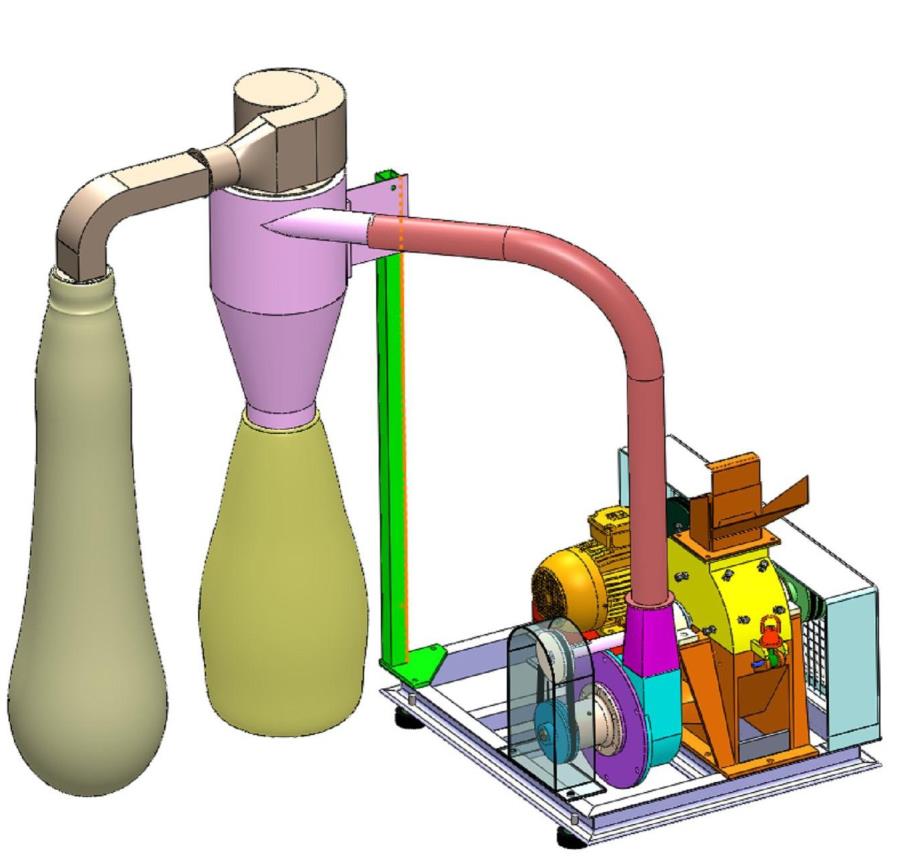

Hammer mill work in the Principle that Most materials will crush, shatter or pulverize upon impact. The material to be crushed enters the hammer mill through gravity feed hopper having an adjustable slide to control the feed material. The material is crushed between the hammers and serrated liners. A powerful blower in hammer mill continuously sucks the ground material through a screen classifier and conveyed through the pipe into the cyclone for bagging. The blower maintains constant airflow in the hammer mill chamber in order to obtain a cool product and continuously cleans the screens, thus increasing the output. Particle size of the ground material can be varied over a large range by using sieves with the desired openings of Mill.

The dust & ground material it gets separated in cyclone separator. Side of the cyclone air balloon is assembled. Air balloon drop the sucked dust in to the cyclone. Material gets collected into cotton bag.

Hammer Mill
